Tour of Reef

Reef is a small Linear-style issue tracker: sign up, create a workspace, and get a kanban board with drag-and-drop, an issue panel, invitations with three roles and a time-travel slider. Every change reaches every open tab within about a second, and each workspace is its own database. This page maps each screen to the code behind it; it works as a first page.

You'll learn

• The six ideas every Ramose app is made of, by looking at one
• Which file drives which screen
• What Reef did not have to write

~12 min

Run it

Reef lives in the Ramose repository rather than on npm, so this one starts from a clone:

git clone https://github.com/tvanhens/ramose && cd ramose && bun install
bun run dev:reef

Wait for three URLs — the Ramose server on :1337, the sign-in Worker on :1338, the app on :5173 — then open http://localhost:5173 and Create account. It is verified on the spot, with no email. Then New workspace, name it, and Add sample issues.

To build your own app instead, nothing is cloned: Getting started installs Ramose from npm.

The whole backend in 700 lines

File	Lines	What it is
src/domain/schema.ts	76	what exists — the schema
src/domain/policy.ts	77	who may — the permissions
src/domain/queries.ts	95	what screens read
src/infra/resources.ts	74	the Ramose server, declared
src/infra/api.ts	139	the sign-in Worker (Better Auth)
rank.ts · roles.ts · shared.ts · alchemy.run.ts	219	drag ordering, role names, shared constants, the stack

680 lines by wc -l, comments included — everything in src/domain/ and src/infra/, plus the deploy file. Zero lines of WebSocket server, REST endpoints, migrations, auth middleware or refetch code.

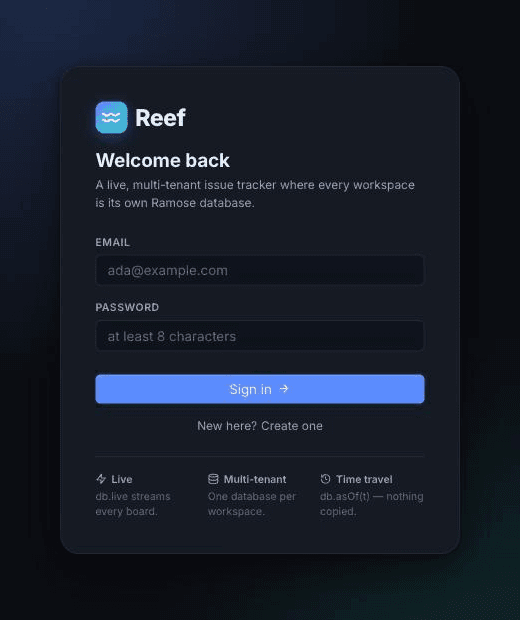

Sign in

Better Auth owns identity. Ramose only verifies the sign-in token it mints. · src/infra/api.ts:100-119

Better Auth (the sign-in library) owns accounts; Ramose verifies the sign-in token — a signed token the server checks on every request and never issues (glossary). Two plugins do it:

examples/reef/src/infra/api.ts:100-119

        jwt({
          jwt: {
            issuer: REEF_AUTH.issuer,
            audience: REEF_AUTH.audience,
            expirationTime: `${REEF_AUTH.ttl}s`,
          },
        }),
        // …
        ramoseToken({
          auth: REEF_AUTH,
          policy: compiledPolicy(),
          classOf: orgClassOf(),
        }),

What you didn’t write

Password hashing, sessions, the token-mint route (ramoseToken is a plugin), auth middleware on the data path.

→ Sign in and roles

Workspaces

Each workspace is its own database. Create runs install() from the browser. · src/app/mutations.ts:28-45

A workspace is one customer’s isolated data — one database (glossary). Create installs the schema into a fresh database and seeds it:

Ramose is built on Effect. In React you rarely see it — the hooks run it for you; inside db.transact you write yield*. (Effect in five minutes)

examples/reef/src/app/mutations.ts:32-40

  Effect.gen(function* () {
    yield* db.install();
    yield* db.transact(function* (tx) {
      const user = yield* tx.entity();
      yield* user.add(User.sub, me.id);
      yield* user.add(User.name, me.name);
      yield* user.add(User.email, me.email);
      for (const seed of SEED_LABELS) {
        const label = yield* tx.entity();

Opening one mounts a provider keyed by its name; switching swaps the connection:

examples/reef/src/app/App.tsx:146-150

      <RamoseProvider
        key={open.workspace.slug}
        url={RAMOSE_URL}
        token={open.workspace.token}
      >

What you didn’t write

Provisioning scripts, migrations, per-customer routing (ramose.db(name) is the routing), token refresh timers.

→ One database per customer

The board

One live query, sorted by rank; the columns are rows.filter(status). The pill counts updates the server pushed. · src/app/screens/BoardScreen.tsx:230-234

The board is one live query — a query that re-runs itself whenever the database changes (glossary):

examples/reef/src/domain/queries.ts:66-68

export const boardQuery = Ramose.query(Issue)
  .orderBy(Issue.rank, "asc")
  .select(boardShape);

examples/reef/src/app/screens/BoardScreen.tsx:230-234

  const db = useDb(slug, Reef);

  const board = useLive(db, boardQuery);
  const people = useLive(db, peopleQuery);
  const labels = useLive(db, labelsQuery);

What you didn’t write

A GET /issues endpoint, a fetch-and-cache layer, a refetch after each write — there is none anywhere in Reef.

→ Live queries

Move a card

One drag, two facts written — and every other window on that workspace follows within about a second. · src/app/screens/BoardScreen.tsx:264-267

A drag is one write of two facts: new status, new position. The old status is replaced automatically. (A write is one all-or-nothing change — Ramose calls it a transaction; glossary.)

examples/reef/src/app/mutations.ts:113-122

export const moveIssue = (
  db: ReefDb,
  issueId: number,
  status: Status,
  rank: number,
) =>
  db.transact(function* (tx) {
    yield* tx.add(issueId, Issue.status, status);
    yield* tx.add(issueId, Issue.rank, rank);
  });

Then the write reaches the Ramose server, which checks the caller’s role against the rules and commits. Every open tab hears that the database moved and re-runs its live queries. Nothing in Reef subscribed to anything. (The server is the one Cloudflare Worker that serves all your databases; Ramose’s code calls it the peer — glossary.)

What you didn’t write

PATCH /issues/:id, a reorder endpoint, conflict handling between tabs, WebSocket broadcast of the move.

→ Write data

The issue panel

Status, assignee and labels come from the live board row; title, description and note ride one live pull. · src/app/components/IssueDetail.tsx:258-266

The panel reads one record with usePull — by id, with the fields you choose (glossary). A per-issue live query loads the comments:

examples/reef/src/app/components/IssueDetail.tsx:258-266

  const extra = usePull(db, { id: issueId }, issueExtraShape).rows ?? null;
  useEffect(() => {
    if (extra === null) return;
    setTitleDraft(extra.title);
    setDescriptionDraft(extra.description ?? "");
    setNoteDraft(extra.privateNote ?? "");
  }, [extra]);

  const comments = useLive(db, commentsQuery, { issueId });

The board’s shape is the fields you ask for (glossary). It follows references, so a card gets creator, assignee and labels inline:

examples/reef/src/domain/queries.ts:24-34

export const boardShape = {
  id: Issue.id,
  title: Issue.title,
  status: Issue.status,
  priority: Issue.priority,
  rank: Issue.rank,
  createdAt: Issue.createdAt,
  creator: Issue.creator.select(personShape),
  assignee: Issue.assignee.select(personShape).optional,
  labels: Issue.labels.select(labelShape),
} as const;

What you didn’t write

GET /issues/:id, per-field PATCH handlers, an issue_labels join table, “someone else edited this” logic.

→ Read data

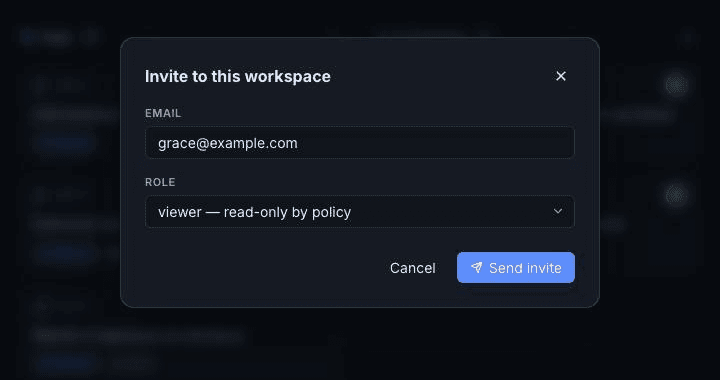

Invite a viewer

Roles live in Better Auth; the token carries one; the policy enforces it. · src/domain/policy.ts:26-32

A role is admin, member or viewer — a name carried in the token that the rules refer to (glossary). The policy names them once:

examples/reef/src/domain/policy.ts:26-32

const anyone = P.or(P.class("admin"), P.class("member"), P.class("viewer"));
const editor = P.or(P.class("admin"), P.class("member"));
const admin = P.class("admin");

/** `member` may touch an issue they created; `admin` never reaches the rules. */
const ownIssue = P.and(P.class("member"), P.eq(Issue.creator, P.principal));
const ownComment = P.and(P.class("member"), P.eq(Comment.author, P.principal));

A viewer dragged a card. The server refused; the toast is all the UI does. · src/app/screens/BoardScreen.tsx:241-245

examples/reef/src/app/screens/BoardScreen.tsx:243-245

  const { run } = useTransact({
    onError: (error) => toast("error", errorMessage(error)),
  });

What you didn’t write

Authorization middleware, per-endpoint role checks, an “is this my issue?” query before each update.

→ Permissions

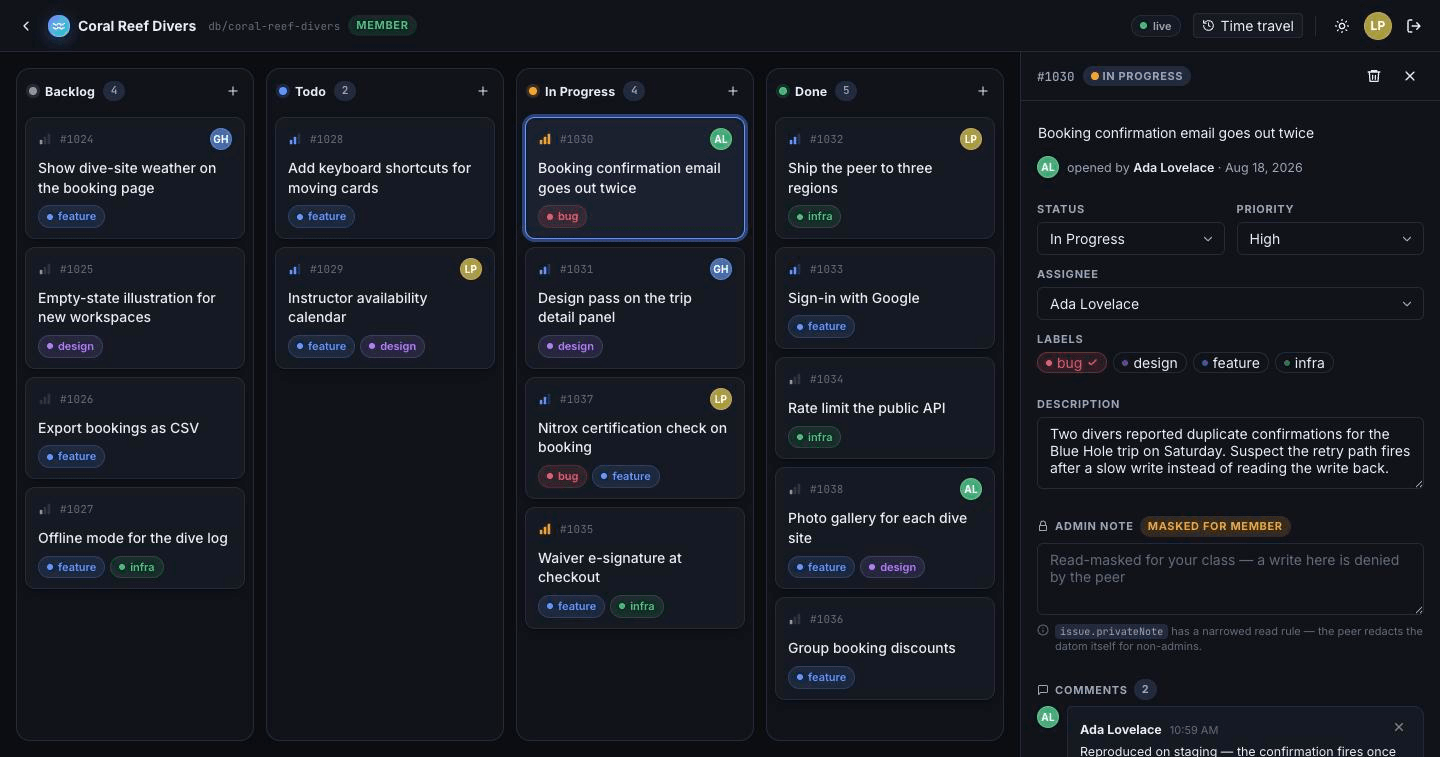

The admin note

Members never receive the note. The server drops the field itself. · src/domain/policy.ts:56-60

One field has a narrower read rule, so shapes ask for it as optional — asking for it as required fails at deploy time:

examples/reef/src/domain/queries.ts:40-46

export const issueExtraShape = {
  title: Issue.title,
  description: Issue.description.optional,
  // Read-masked for member/viewer (policy.ts): must be `.optional`, so for
  // them the row survives and the field is simply absent.
  privateNote: Issue.privateNote.optional,
} as const;

examples/reef/test/policy.test.ts:70-75

  test("a masked attribute pulled as required is a compile error", () => {
    const badShape = { note: Issue.privateNote };
    expect(() =>
      Ramose.Policy.compile(policy, { pulls: [...allShapes, badShape] }),
    ).toThrow(/privateNote/);
  });

What you didn’t write

Per-role serializers, “strip this column for non-admins” in every read path, a second DTO.

→ Permissions · Policy

Time travel

The same board query, read as of an earlier version. Nothing was copied. · src/app/screens/BoardScreen.tsx:448-460

Every write gets a version number t, in order (glossary). The slider picks one; the same boardQuery runs against db.asOf(t), and db.history lists deleted issues too:

examples/reef/src/app/screens/BoardScreen.tsx:448-454

  const maxT = useBasis(db);
  const [scrubbed, setScrubbed] = useState<number | null>(null);
  const t = scrubbed ?? maxT;
  // Until the basis lands, read the live view — the same rows the board
  // already shows — so the hook order never varies.
  const past = useQuery(t === undefined ? db : db.asOf(t), boardQuery);
  const everything = useQuery(db.history, everyIssueEverQuery);

examples/reef/src/domain/queries.ts:84-88

/** Over `db.history` this also returns issues that no longer exist. */
export const everyIssueEverQuery = Ramose.query(Issue).select({
  id: Issue.id,
  title: Issue.title,
});

What you didn’t write

Audit tables, updated_at history rows, soft-delete columns, “as of” variants of every endpoint.

→ Time travel

The deploy file

One file declares the server, its storage and the sign-in Worker; bun run dev:reef runs it locally.

The Ramose server, declared

examples/reef/src/infra/resources.ts:37-52

const Store = Cloudflare.R2.Bucket("Store");
const Transactor = Cloudflare.DurableObject("TransactorDO", { className: "TransactorDO" });
const Replica = Cloudflare.DurableObject("QueryReplicaDO", { className: "QueryReplicaDO" });

export const RamoseWorker = Cloudflare.Worker("Peer", {
  main: import.meta.resolve("ramose/worker"),
  compatibility: { date: "2026-03-17", flags: ["nodejs_compat"] },
  dev: { port: DEV_PEER_PORT },
  env: {
    STORE: Store,
    TRANSACTOR: Transactor,
    REPLICA: Replica,
    ...Ramose.authEnv({
      policy: compiledPolicy(),
      auth: REEF_AUTH,
      internalSecret: process.env.RAMOSE_INTERNAL_SECRET,

Note

You don’t need to understand Alchemy yet — Deploy explains it.

What you didn’t have to write

• A WebSocket server, or any pub/sub fan-out
• REST endpoints for issues, comments, labels
• Migrations, or an ORM model
• Auth middleware — the server verifies every request itself
• Per-customer provisioning — a workspace is ramose.db(name).install()
• Refetch or cache-invalidation code — there is none in Reef

Read the source

• src/domain/schema.ts — what exists
• src/domain/policy.ts — who may
• src/domain/queries.ts — what screens read

Smaller examples: examples/todos, the todo list you build in Getting started, and examples/kv-style (Use it from a Worker).

Next

• Quickstart — run Reef yourself in ten minutes
• Define your data — the schema, piece by piece
• Permissions — Reef's policy, read aloud
